How to Read OBD Live Data: A Step-by-Step Approach
Have you ever encountered a strange sound or behavior in your vehicle, only to find no error codes when scanning it? Not every problem triggers a fault code instantly. Often, certain conditions must be repeated before a diagnostic system registers an issue.
This is where OBD live data comes in—a real-time diagnostic tool that gives insight into your car’s performance as it happens. Using live data, you can identify potential faults before they become serious, saving time and money.
This article walks you through the essentials of OBD live data and shows you how to harness it for advanced vehicle diagnostics.
Understanding OBD Live Data
OBD live data refers to the continuous stream of sensor information your car’s systems transmit while the engine is running. Whereas error codes tell you “what” is wrong, live data shows the “why,” “where,” and “how” behind it—giving you a fuller picture.
Key data points include engine RPM, throttle position, fuel system status, manifold pressure, and coolant temperature.
By interpreting these values, you can improve performance, diagnose early issues, and enhance fuel efficiency. This functionality is particularly useful when a warning light suddenly appears, offering clues beyond just fault codes.
Key OBD2 Live Data Parameters
| Name | Description | Ideal Range |
|---|---|---|
| Short Term Fuel Trim | Adjustments in fuel mix over short periods | -5% to +5% |
| Long Term Fuel Trim | Long-term adjustments to fuel mix | -5% to +5% |
| Engine Coolant Temperature | Heat level of engine coolant | 70–105°C |
| Engine Oil Temperature | Temperature of engine oil | 70–105°C |
| Manifold Absolute Pressure | Pressure within the intake manifold | Varies by load |
| Ignition Timing | Timing of spark ignition | 5°–20° |
| Calculated Engine Load | Engine workload percentage | Varies by usage |
| Mass Air Flow | Air entering the engine (grams/second) | Varies by engine |
| Engine Speed (RPM) | Crankshaft revolutions per minute | 600–900 RPM (at idle) |
| Intake Air Temperature | Air temperature entering engine | Varies |
| Charge Air Temperature | Temp after turbo/supercharging | Varies |
| Throttle Position | Percentage throttle is open | 0–100% |
| O2 Sensor Bank 1 Sensor 1 | Oxygen sensor voltage (pre-cat) | 0.1V–0.9V |
| O2 Sensor Bank 1 Sensor 2 | Oxygen sensor voltage (post-cat) | 0.1V–0.9V |
| Catalyst Temperature | Temperature of the catalytic converter | 200–800°C |
| EGR Value | Exhaust gas recirculation percentage | Varies |
| Alternator Voltage | Alternator output voltage | 13.5–14.5V |
| Battery Voltage | Battery charge with engine off | 12.4–12.8V |
| Open/Closed Loop | Fuel system control status | Closed Loop |
Vehicle Systems Worth Monitoring
To maximize your diagnostics, focus on these major control units:
Engine Monitoring
The engine is not only crucial to your car’s function but also one of its costliest components. Live data can help you monitor:
- Throttle angle
- Engine load
- Air/fuel mix
- Coolant and oil temps
- MAP sensor
- Intake air temp
- Fuel trims (short and long)
- Ignition timing
- Oxygen sensor voltages
These metrics help identify vacuum leaks, misfires, or fuel delivery issues before they cause severe damage.
Transmission Insights
For automatic transmissions, keeping tabs on:
- Transmission fluid temperature
- Gear selection
- Torque converter pressures
- Clutch slippage
These values can preempt shifting problems or overheating.
Brake System Monitoring
A vehicle’s brake system is essential for safety. Real-time data lets you check:
- ABS performance
- Brake pressure consistency
- Brake booster vacuum
- Traction control values
- Electronic differential lock status
This aids in spotting faults in core safety components like ABS or ESC systems.
Other Modules
Advanced diagnostic tools can access additional systems such as:
- Multimedia run time
- HVAC flap positions and internal/external temps
- Calibration and adaptation values
Understanding these values provides an edge in diagnostics and helps maintain comfort and performance features.

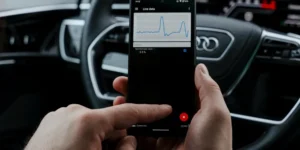

Practical Guide to Using OBDeleven Live Data
OBDeleven is a user-friendly tool that supports standard and manufacturer-specific parameters. To access live data:
- Plug in OBDeleven (FirstGen or NextGen)
- Connect via Bluetooth
- Navigate to control units
- Tap “Live Data” to start streaming sensor values
Even with the standard OBDeleven app, essential readings are available, including:
- Engine load
- Coolant temperature
- MAP readings
- MAF sensor
- RPM
Using Live Data for Troubleshooting
Fuel Trim Diagnostics
Fuel trims indicate how well your engine manages the fuel/air ratio. Look for:
- STFT and LTFT readings close to 0% (optimal)
- Values beyond ±10% suggest air leaks, faulty sensors, or leaking injectors
Coolant Temperature Check
A healthy coolant temp is 70–105°C. Too high? Your thermostat might be stuck, or coolant could be low. Too low? Sensors may misreport, affecting fuel-air ratios.
Engine Oil Temperature
Don’t push your engine hard before it reaches 90–110°C. Quality oil tolerates up to 120°C, but consistent overheating degrades performance.
Transmission Fluid Temp
Should stay within 80–105°C. Anything higher could indicate fluid degradation or mechanical issues.
MAP Sensor Values
These vary with load and throttle. Consistent high or low values may suggest blockages, leaks, or sensor faults.
Ignition Timing
Look for spark advance in the range of 5–20° at idle. Negative values suggest retarded timing, which might stem from lean mixtures or sensor lag.
Engine Load and MAF
Unusual readings here can mean fuel delivery issues or clogged air systems. Both parameters directly impact fuel efficiency.
Engine Speed (RPM)
While visible on your dash, watching RPM helps correlate sensor behaviors. For example, sudden jumps can trigger misfires or highlight faulty IAC valves.
Ignition Timing and Its Importance
Ignition timing determines when the spark plug fires during the engine cycle. Too early or too late, and your engine suffers—misfires, loss of power, even long-term damage.
When your vehicle’s control unit detects a rich mixture or rapid throttle input, it advances the ignition—firing earlier. Conversely, if the mix is lean, ignition retards to allow more fuel to enter before combustion.
Use the “Ignition Timing Advance” metric in live data. A typical value ranges from 5 to 20 degrees at idle. Any significant deviations could indicate issues with pistons, valves, or timing chains.
Understanding Engine Load Calculations
The “calculated engine load” tells you how much of the engine’s potential is being used at a given moment. This metric helps evaluate if your engine is being stressed unnecessarily, which may reduce efficiency and shorten its lifespan.
Frequent high load values during normal driving may suggest clogged air filters, throttle body issues, or overly aggressive driving behavior.
Mass Air Flow (MAF) Sensor Readings
The MAF sensor measures how much air is entering the engine—a key variable in managing the fuel-air mix. An inaccurate MAF reading leads to poor fuel economy, sluggish throttle response, and possibly the illumination of the check engine light.
High values may mean leaks downstream, while low readings could point to clogs or sensor wear. Use live data to watch for fluctuations, especially when revving the engine or shifting gears.
RPM: A Foundational Metric
RPM (revolutions per minute) gives you a real-time read on engine speed. While most dashboards display this, watching RPM through live data offers insight into how other parameters—like fuel injection and timing—change in response.
Stable RPM at idle (around 600–900) is a good sign. Fluctuations may indicate vacuum leaks, throttle problems, or misfires. During acceleration, RPM should climb smoothly; irregular jumps often point to drivetrain issues or failing sensors.
Final Thoughts on Live Data Monitoring
OBD2 live data is more than a tool—it’s a window into your car’s internal health. When monitored correctly, it can extend your vehicle’s life, reduce repair costs, and improve driving performance.
Using apps like OBDeleven, you gain a sophisticated look under the hood. From simple metrics like coolant temperature to complex ones like ignition advance, live data empowers drivers to catch small issues before they spiral into major failures.
Whether you’re a DIY enthusiast or a seasoned technician, integrating live data into your regular diagnostics routine turns guesswork into precision. Master it—and you’ll drive smarter, safer, and longer.
